Name: Industrial Glass Fiber Wrap bandage for additional mechanical protection of anti-corrosion coatings
Brand: Shaanxi Ansen Medical Technology Development Co., Ltd
SKU: 100mm 10m Glass Fiber Wrap bandage
Price: 2.00 USD
Availability: InStock

Home Products Fiberglass fix kit

Industrial Glass Fiber Wrap bandage for additional mechanical protection of anti-corrosion coatings

Product Details:

Place of Origin:	China
Brand Name:	OEM
Certification:	FDA
Model Number:	100mm 10m Glass Fiber Wrap bandage

Payment & Shipping Terms:

Minimum Order Quantity:	50rolls of Water Activated Fiberglass Tape
Price:	1-3$/roll Water Activated Fiberglass Tape
Packaging Details:	Foil Bag ,Hard Inner Box , Outside Corrugated Carton
Delivery Time:	5-15days
Payment Terms:	T/T, Western Union,Paypal
Supply Ability:	120000rolls/month

Contact Now

Detailed Product Description

Properties:	Mechanical Protection Of Anti-corrosion Coatings	Materials:	Fiberglass And Advanced Water Activated Polyurethane
Applicant:	Pipe Leak Repair And Corrosion Pipe Reinforcement	Color:	Black Or White Or Various Colors
Type:	Water Activated Fiberglass Tape	Samples:	Offered Free Water Activated Fiberglass Tape
OEM:	Available Water Activated Fiberglass Tape	Name:	Water Activated Fibreglass Tape

Industrial Glass Fiber Wrap bandage for additional mechanical protection of anti-corrosion coatings

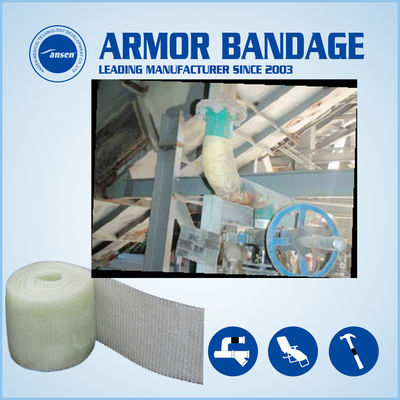

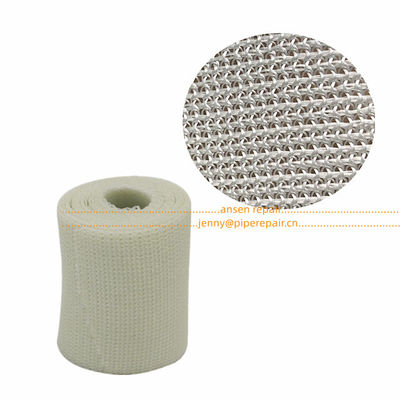

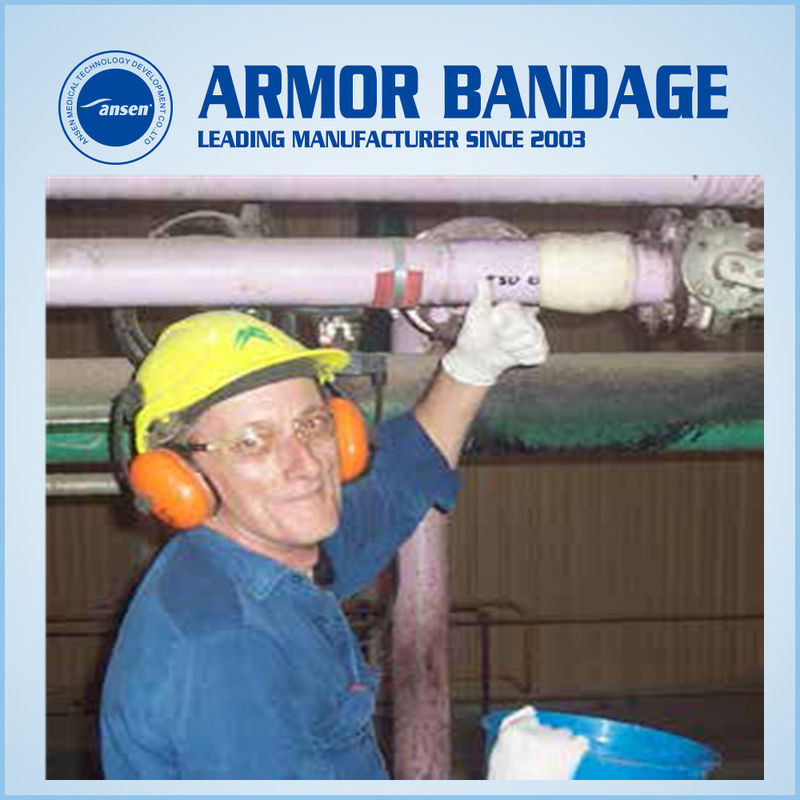

Ansen pipe repair bandage is a fast curing tape composed of flexible fiberglass mesh impregnated with water activated polyurethane resin.

Our repair bandage is mainly used to repair, reinforce and protect oil, gas, water etc pipeline.

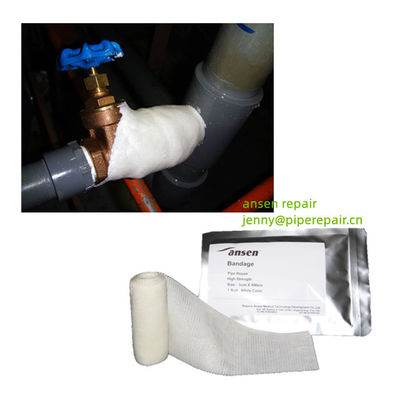

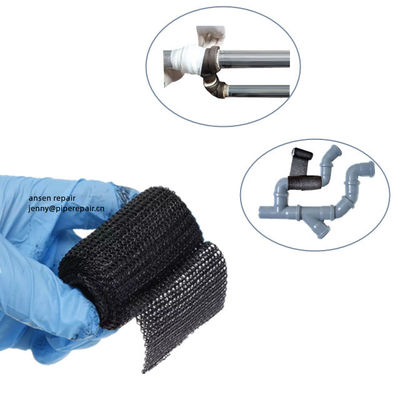

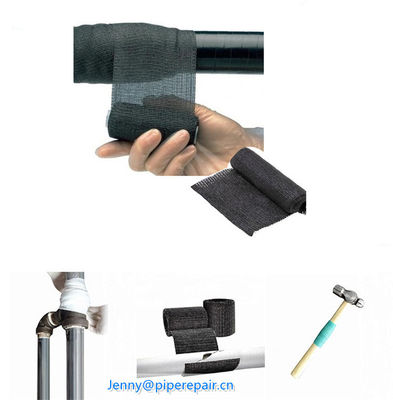

It adheres to metal, plaster, pvc, copper, rubber, concrete, wood, ceramic etc. It can be applied on cracked, fractured, corroded, damaged and leaking pipes, around difficult shapes including straight lengths, tee and elbow joints.

How to contact

Sales manager: Lia
Email: lia@piperepair.cn

Whatsapp/wechat: +86 15771830781

High Quality pipeline corrosion resistant tape fiberglass fabric moisture cured urethane resin Wrap pipe repair bandage

Why you choose us

*18 years professional manufacture pipe repair bandage

*Fast lead time: 7-30 days *Factory Manufacture and Price

*Free samples for your test

*OEM your size and backing*Provide courier/air/sea ship SERVICE

Operation of Pipe repair bandage

1.Shut off the pressure and isolate leak. Clean, degrease and abrade substrate around leak site.

2.Work putty until a uniform mixture is evident.

3.Apply mixed putty immediately to leak site. Firmly press putty into defect.
4.Put on gloves supplied with the Pipe Repair Bandage. Immerse Bandage in water or place under running tap water
for 10 secs.

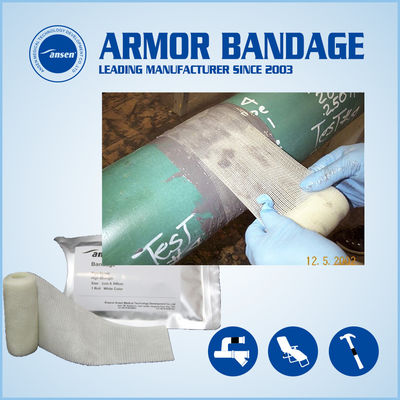

5.Wrap the Bandage tautly around the leak site extending 50mm either side of damaged area.
6.Smooth the resin as it foams during curing and work resin into the base fabric in a 'tightening motion'. Restore pipe to service once Bandage is cured.
Specification of pipe repair wrap bandage

			Product name

			Model

			Size

			pipe repair bandage

			PR002

			50MM X3.6M; 50MM X 1.8M

			pipe repair bandage

			PR003

			75MM X3.6M; 75MM X2.7M

			pipe repair bandage

			PR004

			100MM X3.6M; 100MM X4.5M;
			100MM X4.8M; 100MM X6.1M;
100MM X9.1M; 100MM X10M
100MM X15M

			pipe repair bandage

			PR005

			125MM X3.6M

			pipe repair bandage

			PR006

			150MM X3.6M; 150MM X4.5M;
			150MM X10M;

			Other size also can make, pls kindly contact us to get GOOD PRICE

Application of pipe repair bandage:(two levels for saving costs)

Level 1
Level 1 is for normal Industrial, such as water pipe repaired, sewer pipe repaired, etc.

Level 2
Level 2 is for high requirement of Industrial usage, such as oilfield, gas pipeline etc.

Technical Data of pipe repair wrap bandage
* The vertical tensile strength >=12Mpa

* The horizontal tensile strength >=32Mpa

* Initial cure time: 7-10 minutes

* Full cure: 30-45 minutes

* Coefficient of thermal expansion: approx 9 x 10-3/°Cper ℃

* Adhesion at one--inch single overlap: 20N/mmsq

* Working life: 1-2minutes, depending on temperature of water and pipework

* Service conditions:

* Max service temperature: 150 ℃

* Pressure resistance: 15-30 bar (1.5-3MPa), depending on size of pipe and leak

Packing & Delivery of ansen pipe repair bandage

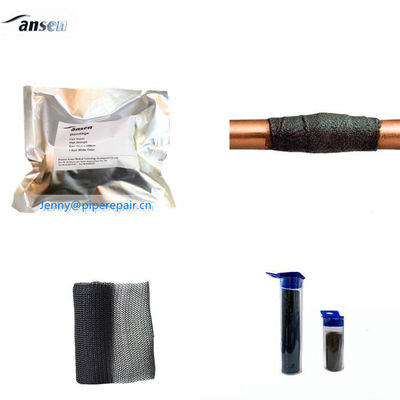

Ansen`s pipe repair bandage pack with individual foil bag then put into inner box and master carton

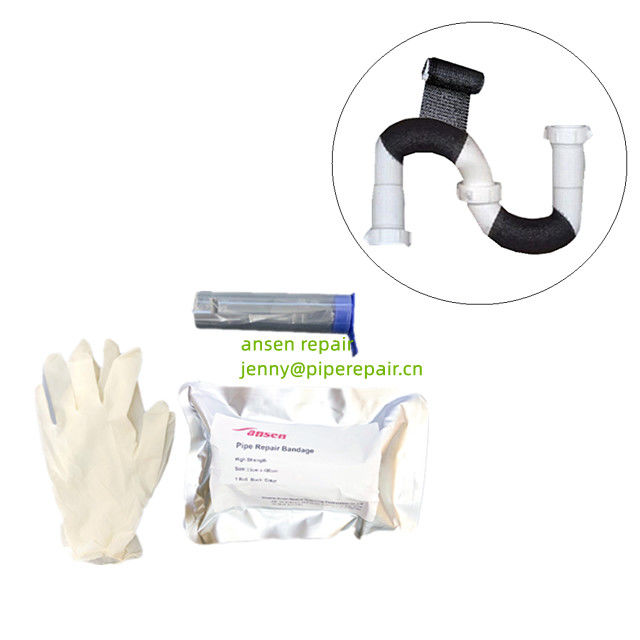

If you need kit packing, we can support, like gift box kit
PE zip bag kit

Color of Ansen Pipe Repair Bandage: white, black, dark green and other color

Shelf-life: Use within 2 years of manufacture date.

Storage: Store in original sealed containers at temperatures between 5°C (40°F) and 30°C (86°F).

RFQ of Ansen pipe repair bandage
1. Can repairs be done using the bandage only?Yes, although a combination of Steel Putty along with the bandage should produce a more successful repair.

2.We suggest the thickness of the Repair Bandage to be a minimum of 10mm.

3. Pipe continues to leak - Not wrapped tight enough! Remove old application and reapply Steel Putty followed by a new Pipe Repair Bandage with a tighter and firmer wrap.

4. Manufacturer recommends this bandage be used only as a temporary repair.

5.For larger diameter pipes: Pipe Repair Bandage application involves a mechanical bind as well as a chemical adhesion. It is important that when applying it, it is pulled extremely tightly around the circumference of the pipe. This ensures a strong

mechanical repair, resulting in a more successful application. However, on larger diameter pipes less torque can be applied and therefore this can result in a less suitable repair. By using multiple bandages, greater internal pressure ratings may be achieved on larger diameter pipes.

6. Pipe Repair Bandage can be used underwater. The curing time may vary due to temperature of water.
Ansen Company Profile
Ansen Medical Technology Development Co., Ltd. was established in 2003, as a highly focused manufacturer and exporter of fiberglass pipe repair wrap bandage, orthopedic fiberglass casting tape and splint in accordance with International Certificates approved. We collect all the materials, and machines and technology from the best suppliers worldwide, and hunt the best person with high qualified skills and experiences. Based on these conditions, we can provide the best products and services to our clients, lead this industry in domestic market for more than 18 years. Backed by our good reputation and rich experience, we have established a stable sales network and have exported to Europe, America, Asia, Africa and Australia.
