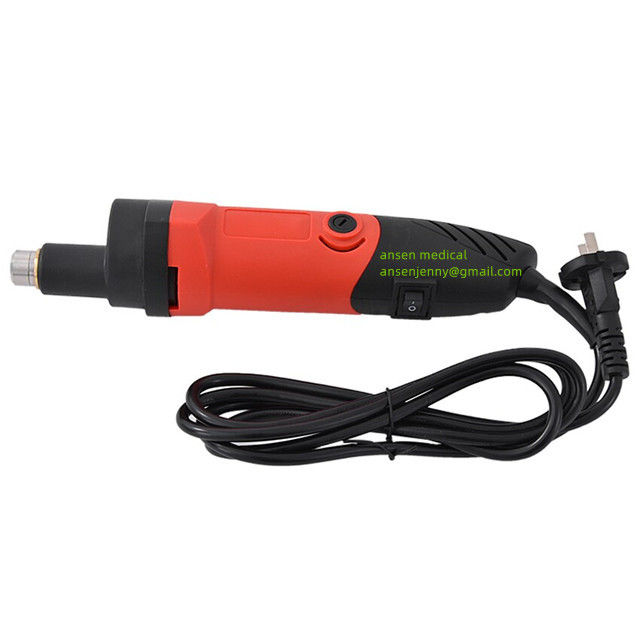

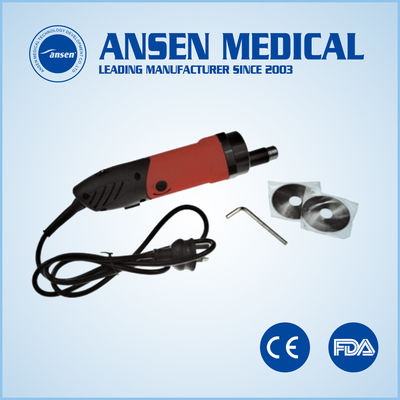

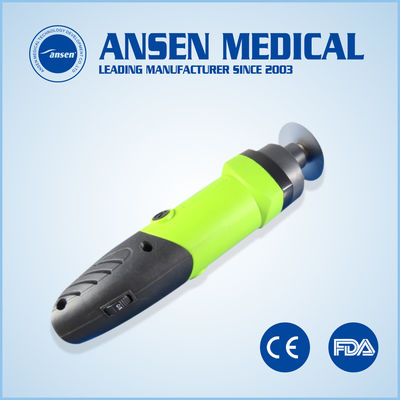

Medical Device Casting Tape Bandage Removel Electronic Plaster Saw

II: System and features:

Ansen electric plaster/ castsaw operation is based on the running of reducer motor be pushed by 24V power

adapter. It can realize removing the plaster or casting tape directly without using scissor. During theoperation,

protective plate can protect patient from hurt by blade.

l Simple Operation

l High-speed saw blade vibration system

l Cut all kinds of bandages

l Adopt import motor, powerful, quickly cutting and reliable.

l High efficiency and safety during operation

l It uses high-speed saw blade vibration system.

l It will not scrach the skin for the blade rolls from left to right with the amplitude of 5.6

l Power Voltage: 110V or 220V / 50Hz;

III: Work condition and technical parameter

1. Normal work condition

l Power Voltage: 110V or 220V / 50Hz;

l Input Power: 115VA

l Maximum swing times: 12750-17250 times/min

l Swing angle of the plaster saw: 60±10

l Whole machine weight:575g;

l Overall dimensions: 260*60*53mm

2. Basic parameter (No-load)

a) Rotate speed: 260prm

b) No- load noise≤ 85dB (A)

c) No-load heat up: Below 15 ℃ with 3 minutes running

IV: Operation instruction

1. Check whether the saw teeth broken or correctly installed before using.

2. Unload the protective plate before assembling the blade. Testing the machine, through the noise and rotated

condition adjust the nuts tightness until machine running normally.

3. Disinfect the blade before cutting.

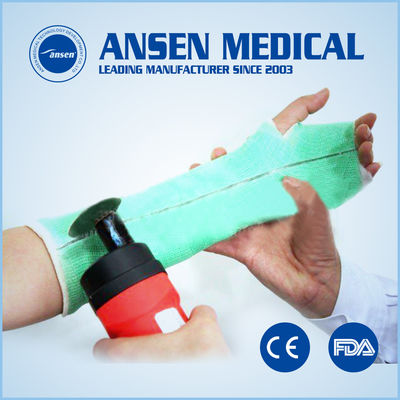

4. Hold the saw tightly and make the saw protective plate inside plaster bandage, and put the protective shrapnel

open slowly. Press the switch button and push the saw go ahead until plaster be opened.

5. When the blade work does not efficiently, turn to another side, the operation as first assembly; Notify that do not

exchange the internal and external ones.
