High Quality Orthopedic Electric Power Tools Medical Electric Surgery Surgical Speed Control Gypsum Plaster Saw Cutter Blades

Parameter: Supply voltage: 220V or Single-phase; Frequency: 50/60Hz Input power: 115VA; Load swing: > 11000 / min.; Noise: ≤84dB Insulation grade of motor winding: E 6 stage speed regulation

Application and attention:
1.Before use, check whether the formation of saw blade,missing teeth,mounting, installing the saw blade when the blade shaft to be fixed,embedded with the pull head axis position of the flat side, with the other nuts in front of the saw blade wrench removed, exit concave sleeve and saw blade,saw blade and then put the other tightly.check the motor ventilation road,should be kept clear to prevent foreign objects clogging, resulting in poor ventilation,resulting in excessive temperature rise of the motor work,or even burn the motor.
2.When used,not used much pressure, when the blade got stuck in the plaster bandage,it should cut off the power slowly withdraw.not to open when the power switch off, easy to damage the motor.
3.The temperature of the motor housing using the increase over time,such as hot case temperature should be found to be suspended,wait to cool before using, or likely to cause motor overheating and burning.
4.When have abnormal sound, vibration is too large,please maintenance in time.
5.Should be wipe clean the plaster saw after operation, kept in dry places(relative humidity less than 80%, non corrosive gas environment)to prevent water and damage and stumble.

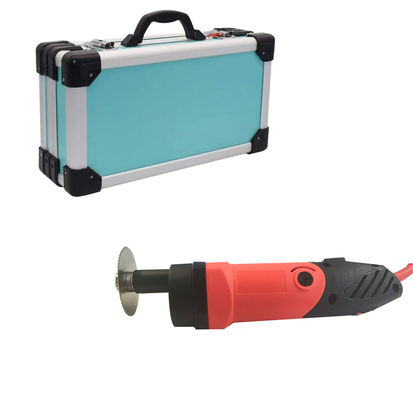

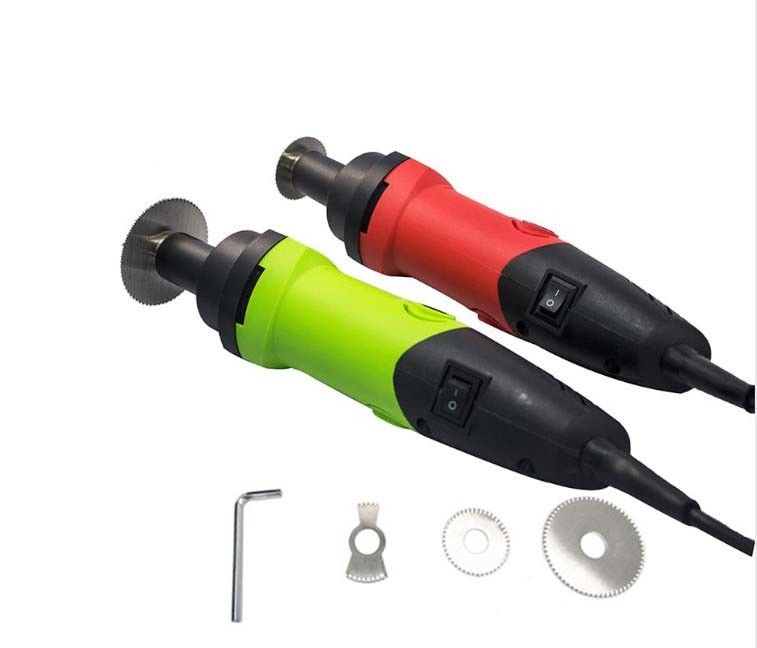

Include:
1 x Medical electric plaster saw
2 x Circular saw blade
1 x Fan-shaped saw blade
1 x Wrench
1 x Carry box
1 x Manual

Company Information



Ansen medical is the manufacturer with 17 years experience specializing in orthopedic products, such as fiberglass casting tape, splint , also supply cast padding, stockinette, elastic bandage, crepe bandage,cohesive bandage, gloves and electric cast saw.







Delivery Details:

We promise fast delivery for our customers. Usually, we ship our products within 7 days after we get the payment from customers.
