Share Ready to Ship In Stock Fast Dispatch Medical Electric Plaster Saw Cast Cutter Orthopedic Sports Medicine 110V 125

Product Details:

Place of Origin:	CHINA
Brand Name:	ANSEN/OEM
Certification:	CE,FDA
Model Number:	CS01

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	USD 160-170/PCS
Packaging Details:	free of aluminum box
Delivery Time:	7 work day
Payment Terms:	T/T, Western Union
Supply Ability:	1000 PCS/Week

Contact Now

Detailed Product Description

Properties:	Orthopedic Surgical Instruments	Type:	Electric Plaster Saw
Instrument Classification:	Class I	Product Name:	Non-active Surgical Instruments, Plaster Saw, Multi Functional Power System, Gypsum Cutter Medical Electric Plaster Saw, Cheap Price Electric Plaster Saw
Application:	Hospital, Cutting Gypsum, Medical Materials & Accessories, For Cuttng Gypsum And Polymer Bandage, General Surgery	Packing:	Free Of Aluminum Box, Customer Request
Noise:	Low Noise, ≤84dB, ≤84dB(A)	Input Power:	115VA, 110Vac -240Vac.50Hz
Oem:	Avilable	Speed:	13000(rpm), 0-11000rpm, 0-13000 Ocs/m
Function:	Cut Plaster Of Paris Bandage And Casting Tape, Surgery Medical, Laparoscopy Surgery

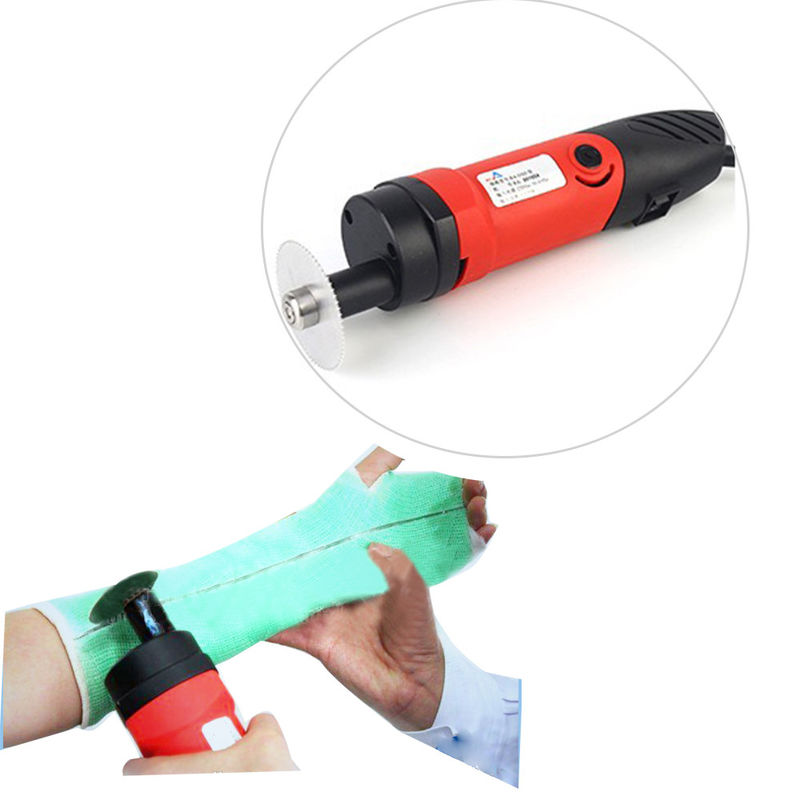

Cut all kinds of bandages,like plaster bandage,fiberglass casting tape etc.

Share Ready to Ship In Stock Fast Dispatch Medical Electric Plaster Saw Cast Cutter Orthopedic Sports Medicine 110V 125

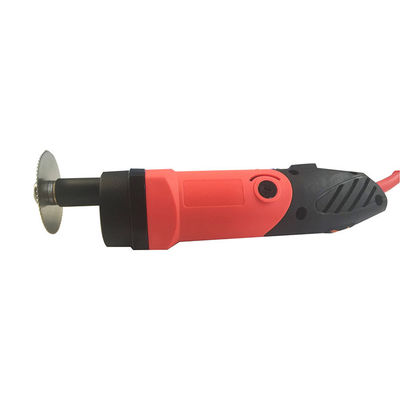

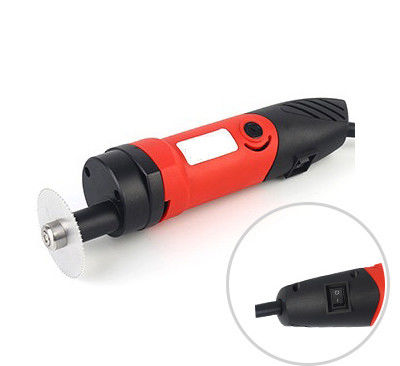

Electric plaster saw is the new generation product designed and researched according to the clinical operation experience. The motor adopts double insulation protection device and guarantees the safety of operators and the wounded. The product features strong motive power, smart design, stable operation, small vibration, low noise, safety and reliability.

Technical Parameters


Power Voltage: 110V or 220V / 50Hz; Input Power: 115VA 2. Maximum swing times: 12750-17250 times/min;
Swing angle of the plaster saw: 60±10
Whole machine weight:575g；
Overall dimensions: 260*60*53mm

Medical Equiptments Handled Orthopeadic Electric plaster pop Saw 3 Blades Medical Cast Saw Cutter

Notes for Medical Electric Plaster Saw

The main engine and electric wire are forbidden to be dipped in disinfectant for disinfection or high temperature disinfection. 2. Clean the surface with soft cotton cloth and neutral soap solution after use. Organic solvent and hard materials are for bidden.
The saw shall be stored in ventilated and dry environments instead of places higher than 40℃. Lay it into the box and avoid collision and impact during transportation.
Generally speaking, stop use if output frequency reduction, impotent output or high noise appears during operation, or it will damage the motor or even hurt the operators.
If the saw hasn’t been applied for a long time or it is applied in damp environment, the insulation resistance between the machine cover and winding shall be measured with a 50ohm meter. If it is less than 7ohm, drying treatment shall be done to the winding until the insulated resistance is above 7ohm.

Medical Plaster Cutting Saw	Quantity
hand piece	1
saw blades	Round 65mm dia. Blade Round 42mm dia. Blade Universal Plaster Cutting Blade
aluminum alloy case	1
Spanner	1
manual	1

Operation of Medical Electric Plaster Saw

1). Remove the main unit, spanner and saw blades from the case. 2). Use the spanner to unscrew the blade holder
3). Once the blade holder is loose remove it from the unit 4). Place your chosen blade on the drive shaft
5). Tighten the blade holder back onto the unit
6). Secure the blade into place using the spanner
7). The saw is now assembled ready for use. When finished, simply repeat these steps.
Medical Equiptments Handled Orthopeadic Electric plaster pop Saw 3 Blades Medical Cast Saw Cutter

Ansen Medical Technology Development Co., Ltd. is established in 2003, as a highly focused manufacturer and exporter of orthopedic casting tape, splint, electric plaster saw, casting padding, tubular bandage, elastic Bandage etc. We collect all the materials, machines and technology from best suppliers worldwide, and hunt person with high qualified skills and experiences. Based on these conditions, we can provide the best products and services to our clients, lead this industry in domestic market for more than 17 years. Backed by our good reputation and rich experience, we have established a stable sales network with several global customers from Europe, America, and Asia etc.Medical Equiptments Handled Orthopeadic Electric plaster pop Saw 3 Blades Medical Cast Saw Cutter

Surgical Reciprocating Oscillating Saw Orthopedic Drill Plaster Saw Cuts Sierra Para Cortar Yesos OrtopedicosAfter-sales Service Commitment Share Ready to Ship In Stock Fast Dispatch Medical Electric Plaster Saw Cast Cutter Orthopedic Sports Medicine 110V 125

The saw can be repaired freely within half a year of quality problems occur.

Besides, it adopts one-year guarantee period. During the guarantee period, only the material will be charged.
